Pressure Measurement with the ecom-DPH

Pressure Measurement with the ecom-DPH

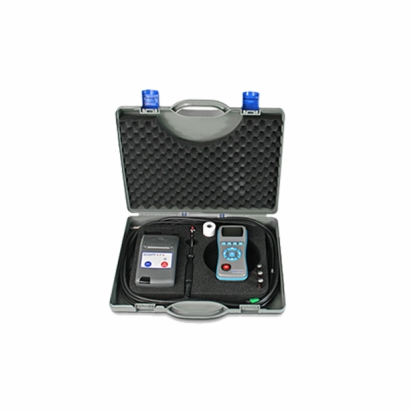

ecom-DPH Measuring Instrument

Measured values: temperature (-50… 300°C), differential pressure (± 10 hPa), Calculated value: air speed (0,15 m/s… 40 m/s), ventilation and surface losses, Graphic-capable display with window ≈ 43 x 28 mm, resolution 128 x 64 Pixel, backlit, Power supply: 3 current batteries 1.5V (Mignon) or 3 accumulators 1.2V AA NiCd (nickel-cadmium) or 3 accumulators 1.2V AA NiMh (metal-hydride), Accumulator charging and instrument operation possible via current USB charger.

Dimensions case:

approx. 390 x 345 x 90 mm (L x W x H) Weight: approx. 1,8 kg
