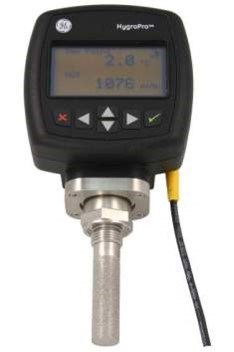

HygroPro

  • Single Channel, Intrinsically Safe, Loop-Powered Moisture Transmitter
  • Measurement range of +20°C to -110°C with Ability to Calculate a Variety of Moisture Parameters: PPMv, PPMw, Lbs/MMSCF in NG and % RH
  • Aluminum Oxide Moisture Sensor Technology (NIST Traceability)
  • Integral Display/User Interface
  • Adjustable Screen to Display 3 Measurement Parameters (ie: Dew Point degC, PPMv, Lbs/MMSCF, Pressure & Temperature)
  • Analog (4-20 mA) & RS485 Digital Outputs
  • Ratings: IP67/NEMA 4X; ATEX EX II 1G EEx ia IIC T4; IEC EX ia IIC T4; EEXd Optional Enclosure
  • Sensor: Replaceable Transducer Element (RTE) can be replaced at Field
  • Calibration Data stored at the RTE, NO MANUAL Calibration INPUT needed
  • RTE can be kept as Spare, and Roll In/Out while Calibrated
