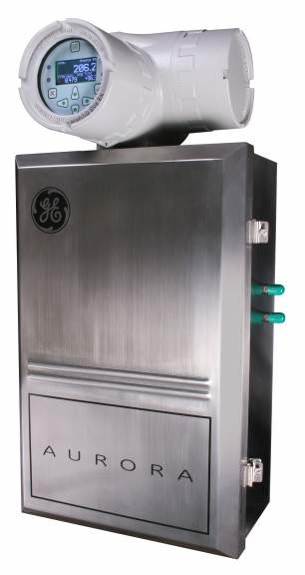

Aurora H2O

  • Response Time: <2 seconds
  • Measurement Range:
      • 0 to 5000 PPMV
      • -71.7ºC to –2.6ºC dew/frost point @ p=atm
      • 0.095 to 237 Lbs/MMSCF (1.52 to 3,803 mg/m3)
  • Accuracy: +/-1% or 2 PPMV
  • Repeatability: +/-0.1% or 0.2 PPMV
  • Sample Pressure: 10-25 PSIA
  • Process Pressure: 0-1500 PSIG
  • Temperature: -20 to +65ºC
  • Sample Flowrate: 0.1 to 10 l/min
  • Analog Outputs: Three 0/4-20mA Outputs
  • Digital Output: RS485/232 & Modbus RTU
  • User Interface: “Through the Glass” Magnetic Buttons
  • Classification: Explosion-Proof Class 1 Div 1 Groups BCD & ATEX Zone 1
  • NACE Compliant: ANSI/NACE MR-0175
  • IP Rating: IP66 / NEMA 4X
  • Integrated Sampling System Equipped with Two Stage Liquids Knock Out (Water, Hydrocarbons & Glycol), Pressure Reduction and Flow Control
  • May be Installed Outdoors in All Types of Weather
  • Reads Line “Pressure Dew Point” with Input from GE DRUCK Pressure Transmitter
  • Integral Sampling System – NACE compliant (for use in NG with H2S …Sour Gas)
  • Digital Interface (Modbus) & Software Enable the unit to Read & Configured Remotely from Control Room
  • Software has Utility for Saving Historical Data and Capturing Spectral Scans.
  • Data may be Exported as ASCII text for use in Excel and other programs.
  • Software Provides Diagnostics and Instrument Health
